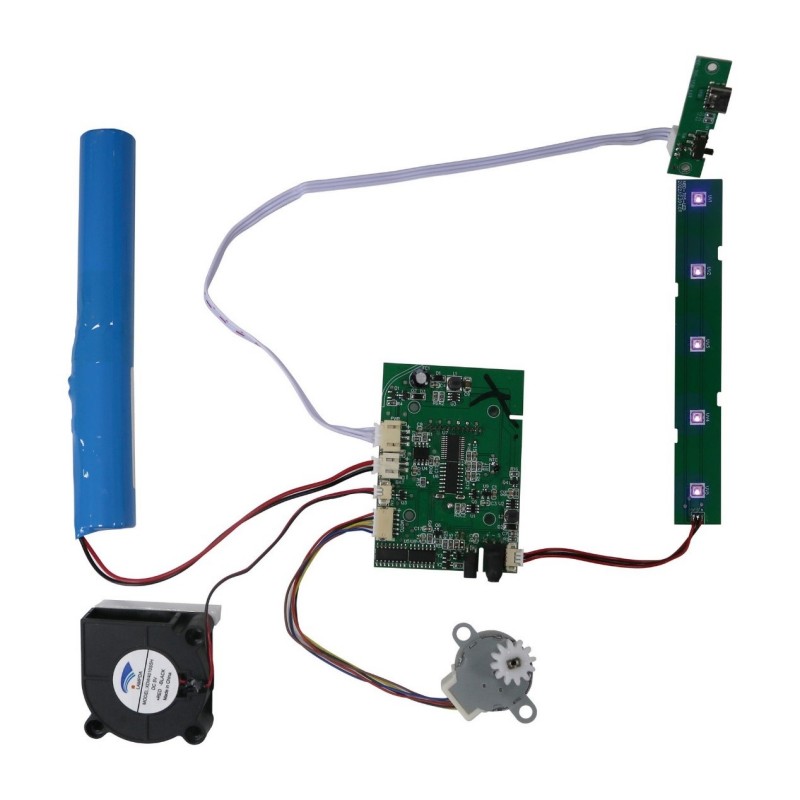

UV Disinfection Cabinet PCBA

Product Features

UVC LED management: SUNSAM high quality UV Disinfection Cabinet PCBA can drive the UVC LED lamp beads to control the power of the UVC LED lamp beads and the time of use. For example, a single module may use six UVC LEDs to get the combined optical power.

Power Regulation: The PCBA has the circuit that can receive stable voltage input, which can adapt to different power supply ranges to ensure the stability of LED operation. Safety & Control Features: Timers and safety interlocks such as automatic shut-off when the door opens, indicator lights, these are all managed within the body of the assembly.

Design requirements

Choosing SUNSAM for your UV Disinfection Cabinet PCBA gives you concentrated design-for-manufacturing know-how. The unique requirements for UV sterilization equipment during the PCBA layout stage:

Thermal Management

UVC LEDs produce heat. We consider the heat dissipation of our PCBA design, so as to protect the components and extend the LED's life.

Compact Layout

We make small boards (like ones with sizes of 77mm by 15mm) that can be put into different kinds of cabinet forms without making the space between parts too close or the distance between wires not safe.

Material Selection

Components are chosen that can handle the operating environment, and assembly follows a process appropriate for the product’s intended use.

Integration and Application

This UV Disinfection Cabinet PCBA is meant to be added to a standalone disinfection cabinet and is used for items like small personal electronic devices, tools, and laboratory equipment. Final product would have a stainless steel inside, and a see-through door to look inside and be controlled by the microcontrollers we have on our PCBA.

Why choose SUNSAM?

Partner with SUNSAM on your UV disinfection project. We specialize in high-pressure UV water disinfection for drinking, waste and process water treatment. Our solutions provide a wide range of applications.
We offer more than a typical board. We pay attention to your UV disinfection product's PCBA special needs from schematic design, component sourcing to assembly and first test. We will try to convert your sterilization cabinet idea into an actual, manufacturable electronic core.
If you have particular parameters that your UV disinfection cabinet should adhere to like the desired amount of time to sterilize something, the inside dimensions of the cabinet, or what the power requirements are, please share this information with me. It will give us the chance to talk in more detail about how you could change the SUNSAM UV Disinfection Cabinet PCBA to fit your needs.
