DC brushless motor range hoods have gradually increased in the scale of kitchen appliance production as a result of better airflow, reduced noise and energy consumption, lower retail prices, etc. A conventional brushed motor can move air; however, a modern BLDC motor range hood needs PCBA technology to handle commutation control, speed curves, overload protection, user interface response, etc.
Global Motor Adoption Data Supports the Change. Frost & Sullivan data in a Hong Kong listing document shows that the global market for BLDC motors grew from 121.7 billion yuan in 2019 to 274.9 billion yuan in 2023 and is expected to reach 686.9 billion yuan by 2028. The amount of China's BLDC motor market in 2019 was 28.6 billion yuan, which has increased to 69.6 billion yuan by 2023, and is projected to reach 194.6 billion yuan in 2028.
According to the above data, BLDC motors in China's home appliances will rise from about 40 per cent in 2023 to around 60 per cent by 2028. By 2028, about 90% of white goods will be used in China. Range hoods are in the same group of consumer appliance upgrades because ventilation motors, touch controls, lighting, cleaning reminders and safety logic all require a unified control board.
Range hood manufacturers used to reserve DC brushless motors for the high-end model because of the added cost of the motor and driver board. Component cost changes, stronger China motor supply chains and better driver chip availability are all reducing the old price gap. In some projects, a BLDC motor and an adjusted PCBA architecture can now be used in place of part of the brushed motor range.

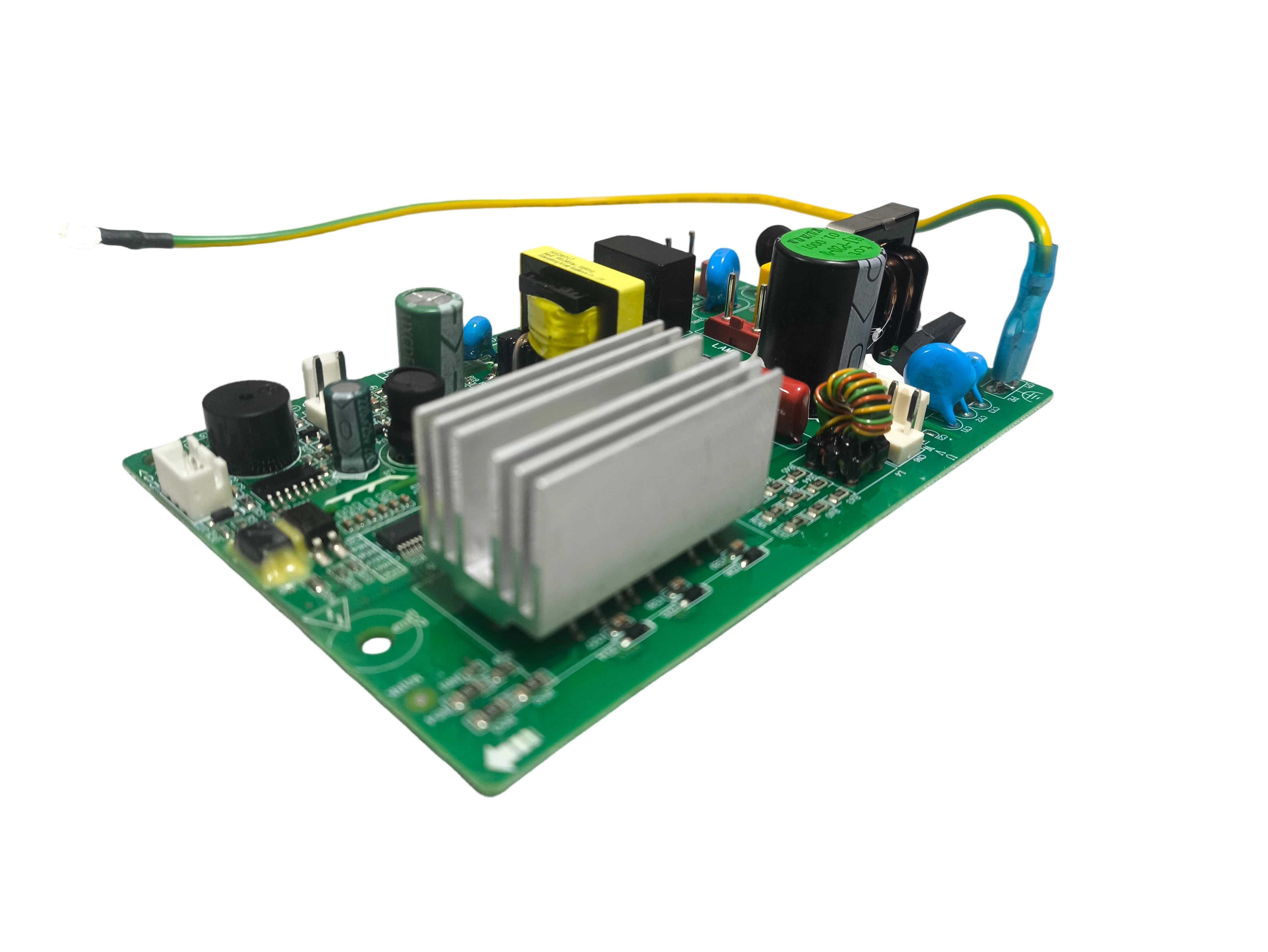

A competitive range hood PCBA does not simply have one motor output replaced by another motor output. A BLDC range hood PCBA generally needs an MCU, gate driver, MOSFET or IPM stage, current sampling, back electromotive force detection or Hall interface, low-voltage power conversion, surge protection, thermal protection, key or touch input, LED lamp output, buzzer output, and test points for production.
Sensorless BLDC control can reduce the demand for Hall sensors when the rotor position accuracy allows sensorless operation. A Hall-based design can maintain a stable start-up in the presence of a high-resistance duct or greasy air load. Select based on the inertia of the blade, impeller type, rated suction power and duct pressure, voltage platform, and the intended retail class.
Faber Public Technology's information reports that brushless motors in Faber cooker hoods are 85% more energy-efficient than conventional electric motors at low- and medium-to-high speeds, and 35% more so at high speeds. Faber has also extended the stable operating conditions of brushless motors and improved the precision of extraction speed.
Miele DA 5798 W data sheet: A++ energy class, 24.1 kWh/year annual energy consumption, 600 m³/h boost airflow, 35 dB minimum noise and 52 dB maximum normal-use noise. Miele data shows that buyers can compare energy, airflow and sound-insulation for a product choice easily.
According to ENERGY STAR data, certified ventilation fans are about 48 per cent more energy-efficient than standard models, quieter, and use high-performance motors and better blade designs. Although ENERGY STAR ventilation fan listings include many types of fans, the same buyer logic is applied to the planning of range hood products for export markets.
According to the Product Guidance by the European Commission, range hoods for the EU need to meet the new energy label and ecodesign requirements. The covers are annual energy consumption, fluid dynamic efficiency, light-emitting efficiency, grease-filtering capacity and acoustic noise. Therefore, the design of the range hood's PCBA will not be simple on/off control.
Although BLDC motors provide stronger mechanical support for range hoods, PCBA technology is used to make the motor base a product advantage. The Control Algorithm adjusts the initial speed, boost speed, soft start, stall protection, overload response, speed regulation etc. during voltage fluctuations.
A kitchen hood has a variable air resistance because the duct length, number of elbows, filter status and cooking plume load all change from one house to another. Brushed motors are often simple voltage or tap-speed controlled. A BLDC motor range hood PCBA can maintain a more stable airflow by adjusting phase drive, duty cycle and current limit.
Noise control also originates from PCBA design. Sinusoidal drive, field-oriented control, switching frequency selection, PCB layout, current sampling accuracy and EMI filtering are all related to audible noise and electrical noise. A good design of a PCBA can reduce sudden torque ripple and smooth speed transitions.
Board-level losses account for most of the power loss in motors. RDS(on) and gate charge of the MOSFET, diode recovery, copper width, thermal path and power supply design all affect heating and conversion loss. A low-cost board will not be able to realise the motor's performance advantage, and an expensive board may fail to meet the design goals for efficiency.
Foshan Shunde SunSam Electronic Co., Ltd. introduces SUNSAM PCBA as a high-tech enterprise that integrates printed circuit board (PCBA) project development, manufacturing and marketing. The company's site lists the certification under GB/T19001-2016 and ISO 9001:2015, and features engineers focused on PCBA for home appliances.
SUNSAM PCBA's public product structure already includes PCBA Heaters, PCBA Refrigeration, Washing Machine PCBA, Auto Control Devices PCBA, Smart Home Devices PCBA, Dishwasher PCBA, Smart Toilet PCBA, Electric Kettle PCBA and Water Heater Components. A range hood PCBA project also uses the same home appliance control logic: motor drive, user operation, lighting, sensing, protection, and batch testing.
The official website of SUNSAM PCBA lists component procurement, PCBA fabrication, PCBA assembly, prototyping to mass production, cable wire harness service, EMS service, quality management, technical support, fast turnaround, and more than 5,000 served clients. The website also has a list of high-speed placement machines, 10-temperature-zone reflow soldering, SPI and AI plug-in equipment, wave soldering, X-ray inspection, etc.
SUNSAM PCBA reports the following capacity and sampling figures for PCBA assembly: 520,000 units per month, four SMT production lines, two THT production lines, and sample delivery within 15 days. The engineering team can finish PCBA prototyping of the program within 2 weeks according to the website.
The BLDC range hood PCBA design should start with the motor power, maximum airflow, impeller load, voltage input and safety standards. A 60cm cooker hood for an apartment kitchen will likely use a different current limit and speed curve than a 90cm chimney hood designed for an open kitchen. Match the parameters of the motor and do not use a general-purpose fan driver.
Power Supply Planning Impacts Long-Term Stability. A typical board may need AC input protection, rectification, a high-voltage DC bus, low-voltage rails for the MCU and sensors, an isolated or non-isolated auxiliary supply, and surge resistance. Connector Selection Also Affects Contact Quality Due to Grease, Vibration and Heat.
The control software should have the following functions: soft start, locked-rotor protection, over-current response, over-voltage and under-voltage logic, over-temperature shutdown, speed memory, child-lock logic, lamp control, delayed shutdown, and filter cleaning timer. Smart models may add Wi-Fi, app commands, air quality sensing or cooktop linking.
Manufacturing Test Design should be in advance of mass production. Range hood PCBA test content can cover ICT, power-on test, communication test, motor drive waveform check, current protection check, LED output check, button or touch test, buzzer test, and burn-in sampling. A Test Fixture Can Be Used To Simulate Motor Load.
With a drop in BLDC motor costs, the cost structure of the PCBA will be the focus of price reduction. Select a good material that is simple to manufacture and affordable. A relatively low-cost MCU package, a reasonably-rated MOSFET, a driver chip, a capacitor series, a shunt resistor, and a connector platform can be selected to reduce the overall cost without compromising the stability of airflow or field performance.
Supply Chain Restructuring Also Alters Sourcing Strategy. A PCBA factory in the area of appliance clusters in Guangdong can select some qualified component channels, observe price fluctuations over time, stock up on alternative components in advance, and then submit a quotation. SUNSAM PCBA's service page lists ERP-driven component procurement, nationwide sourcing, market intelligence, supplier network, and BOM alternative recommendation.
Cost reduction should not be done by removing protection circuits arbitrarily. A range hood should be able to cope with changes in steam, oil, heat and line voltage. Missing surge protection, insufficient creepage distance, weak thermal design or poor motor fault handling may harm the brand after product release.
Consumers compare range hoods based on suction power, noise level, energy label, control panel design, ease of cleaning and price. BLDC Motor PCBA Technology Affects All Listed Factors. The product will be relatively quiet at a normal cooking speed, faster during boost mode, smoother during speed changes, and easier to connect with smart-home devices.
Retailers also prefer clear selling points; "DC brushless motor", "inverter control", "low noise", "energy saving" and "nine-speed control" are easy for a salesperson to explain. Faber India already has BLDC motor, 1500 m³/h suction, nine-speed selection, gesture and touch control, and auto-cleaning functions in one of its current hood models. The combined features of the motor and PCBA now function as a single retail product.
The next stage of competition for range hood brands will not only be a lower-cost BLDC motor. The next round of competition will be a matched BLDC motor PCBA platform, which includes motor control, a UI board, lamp power supply, sensor interface, wire harness, plastic housing fitting, production tests, and certification-ready documentation. PCBA Technology Reduces Component Costs and Expands Market Share.
SUNSAM PCBA can support appliance brands that need a custom DC brushless motor range hood PCBA by reviewing function requirements, motor parameters, airflow targets, panel controls, size limits, BOM, Gerber files, firmware needs, wiring diagram and sample conditions. A full project file can be provided to the engineering team for the creation of a board plan for sample verification and mass production.
-
