As a professional high quality Oven PCBA manufacturer, you can rest assured to buy Oven PCBA from SUNSAM factory and we will offer you after-sale service and timely delivery.
A PCBA is the electronic heart of a modern oven, making it smart rather than just a box that heats things up. Unlike a bare PCB, which is just a board with pathways for electricity to flow through, an Oven PCBA has lots of electronic parts like microcontrollers, sensors, and relays stuck to it. This assembly is in charge of all functions, including temperature control, timers, more advanced cooking modes, and responding to the user interface. When you buy or get a new oven, how well its inside Oven PCBA works really affects things like how it cooks food, how much the same food turns out each time, and what extra stuff it can do. Companies like SUNSAM work their design skills to make those key boards, so that every time the heat goes up and down, they handle it well.
Effective heat management could be viewed as the most important thing in Oven PCBA. It must work properly in a hot setting and control the oven’s heating components. careful design regarding both part and board. For example, conformal coating protects the assembly from moisture and contaminants and positioning the temperature-sensitive parts is important. Finding parts that can handle long spells of heat stress is part of the process. Also, controlling the heat applied to the PCBA’s own manufacturing, i.e. during soldering, is critical. Special low-pressure baking methods can be used to slowly dry the components before soldering, so as not to damage them due to heat when assembling. Attention to details of design and the actual manufacture. That is how you know its a legit PCBA vendor.
The design requirements of an Oven PCBA differ widely according to the shape and function of the appliance.
Built-In Oven PCBA: These ovens are installed within the kitchen cabinetry where space is limited. Efficient heat dissipation is required to protect surrounding materials. PCBA should be designed for the structure which is fully enclosed. Patents show that good designs have a special, ventilated PCB frame that keeps the board away from the oven’s insulated bottom and uses moving air to cool it down.

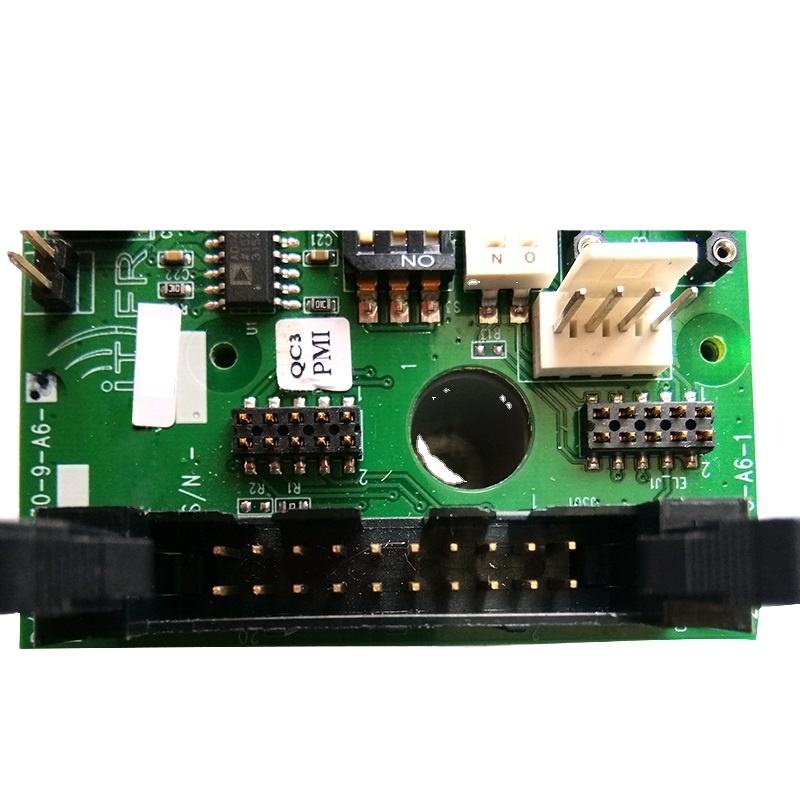

Countertop Oven PCBA: In these small devices, the PCBA needs to be compact and cheap but also do different cooking functions. Design is more towards having less components, and a easier to use panel. When it is a smaller control panel.

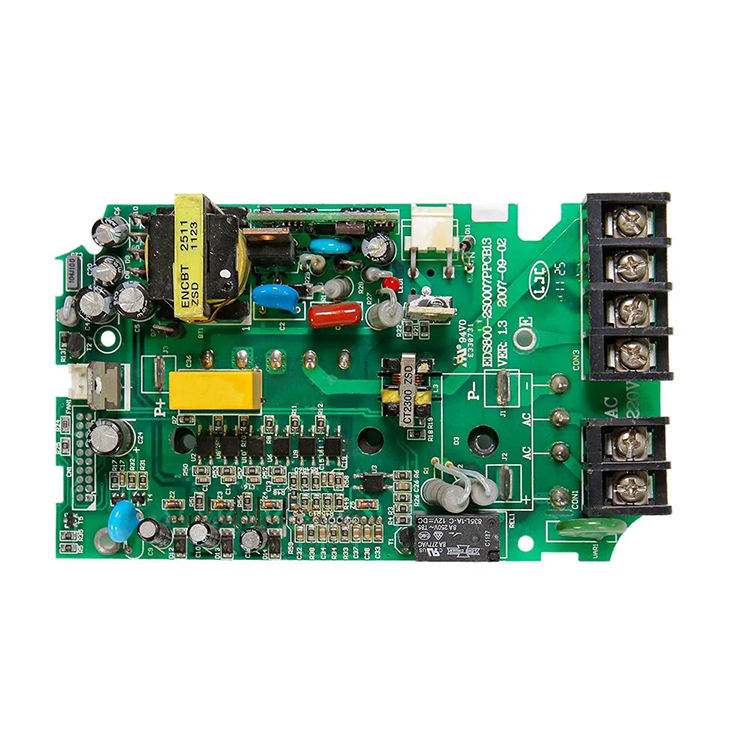

Convection Oven PCBA, this kind requires more complicated control. A Convection Oven PCBA has to control a fan and a heater element precisely to circulate hot air. It has algorithms of continuous airflow and air temperature distribution that go beyond on/off type commands. The thermal profiling of such a PCBA during reflow soldering is already quite precise.
To help engineers buy or source such boards, knowing about these different design needs is the first step. SUNSAM as a partner can navigate the nuances and apply specific PCBA design rules for different ovens.
At SUNSAM, we start the Oven PCBA design process by comprehending the working environment. we consider such factors as temperature ranges around us, vibrations from fans or solenoids, and expected lifetimes. We can choose the right soldering and assembly technology for our PCBA design, whether that’s strong through-hole connectors or tiny surface-mount parts. We help clients find a PCBA that works well and can be made easily. You want to buy a regular board or work with us to develop a special design. We will ensure that the Oven PCBA you receive is controlled accurately and lasts for a long time. Our objective is to make sure the PCBA we give you turns into a dependable center of your appliance.
A: In terms of the working environment and level of reliability. An high quality Oven PCBA is specifically made to work for a long time in a place that's very warm, sometimes even wet, inside a big kitchen machine called an oven. It makes use of parts that can tolerate higher temperatures, it has protective coatings that can withstand conformal temperatures, and the arrangement is such that it promotes heat dissipation. And it has a very strong focus on safely controlling a very high power heating element, and most standard electronics don’t have to deal with that.
The key challenge is getting the fan motor to work together with the heating elements. The PCBA design must have a motor drive circuit and more complex control algorithms for regulating both the fan speed and heat.
