As a PCBA manufacturer in China, SUNSAM specializes in producing high quality coffee machine PCBA, we can provide a variety of PCBA can adapt to different types of coffee machine welcome to contact us at any time.

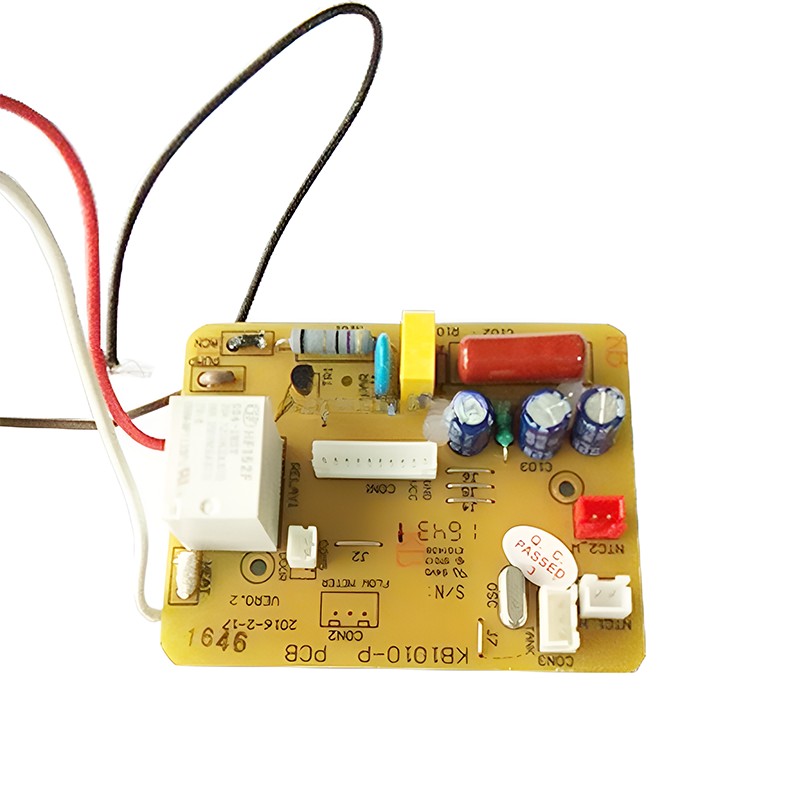

Automatic Espresso Machine PCBA: The most complex type. Its design must orchestrate high-pressure pumps, exact temperature controls for the boiler, and frequently, a grinder mechanism—simultaneously. A well-designed PCBA maintains the pressure and temperature required to make a great espresso.

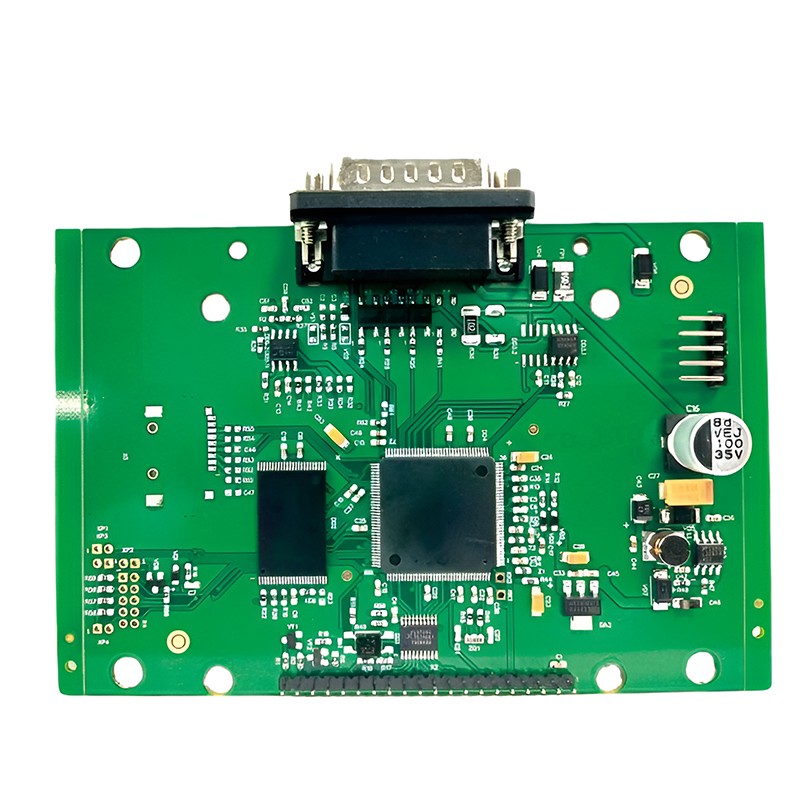

Drip Coffee Maker PCBA: The design priority is usually around getting a reliable heat cycle and an auto switch. PCBA controls a heating plate/thermal carafe system and a simple pump, to keep a steady brew temp and make it easy for the user to make their daily coffee.

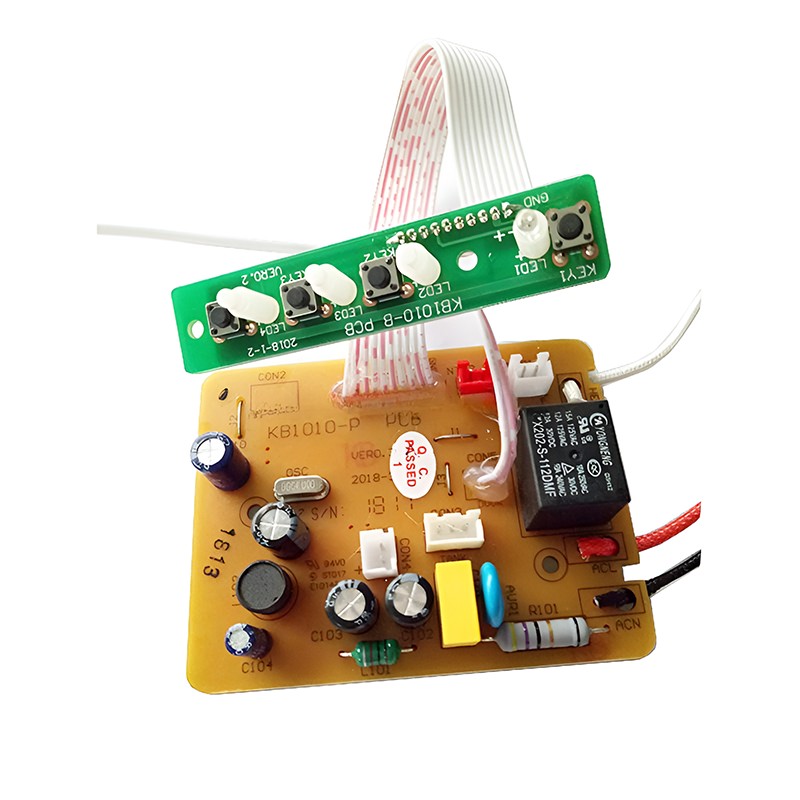

Capsule Coffee Machine PCBA: convenience and speed. PCBA in these machines is made for fast heat-up times, exact piercing and brewing of sealed capsules, and talking to the capsule's barcode (if there is one) to automatically change settings. Good heat dissipation can be called the design of board.
When deciding to get a PCBA for a brand new coffee appliance, these function differences are significant. SUNSAM and other similar companies would take each coffee machine PCBA project and analyze the mechanical and thermal requirements needed to make the coffee, before starting the production.
1. Size constraints and weight control;
2. Thermal management and heat dissipation issues;
3. Electrical safety, especially regarding electric shock prevention and leakage protection;
4. Waterproofing, moisture-proofing, and dust proofing requirements;
5. EMC interference and shielding;
6. Safety standards and regulatory compliance;
7. Reliability testing and stress tests;
8. User interface design and experience optimization;
9. Material selection and environmental protection
Environment & Durability: PCBA is in a humid, warm environment with a risk of coffee or water spilling on it. A good design includes a conformal coating to protect from humidity and minor liquid exposure. Components must be chosen and put so they can handle the heat going up and down every day.
User Interface & Connectivity: The modern machines could have digital displays, touch controls, or smartphone connectivity. PCBA has to integrate these interfaces smoothly. PCBA design with clear layout can guarantee that users' inputs can respond, and the control logic of the whole system is simple and easy to understand.
Safety & Compliance: As a heater for hot water, safety is of no concern. It has key protections such as auto shut-off, thermal fuses, and grounded circuits. It has to be constructed to fit with international safety and electromagnetic compatibility standards for consumer goods.
There're some important points to make you choose a good professional Coffee Machine PCB board maker for your needs. SUNSAM's PCBA in stock design process focuses heavily on design for manufacturability and real world usage to make a board that isn't just electrically sound but also physically tough for a kitchen environment.
At SUNSAM, we see the high quality coffee machine PCBA design as a joint engineering task. We look carefully at how it works as a mechanical thing, how the people that work with it and what the manufacturing of it wants to achieve. Pay more attention to details in the process of making it easier in terms of production, if you need to create a batch of prototypes or go straight into mass-producing. For businesses developing a brand new coffee machine PCBA, this approach from concept to assembly file can help turn a good coffee idea into a reliable, producible coffee machine.
The main difference between a PCB and a PCBA in a coffee maker is that a PCB is a printed circuit board that has only the electronic components attached to it, while a PCBA is a printed circuit board assembly that has both the electronic components and the PCB itself attached to it.
A: A PCB is the bare green board with copper traces but no components. PCBA means that a PCBA board is the entire working board after all chips, resistors, and connectors have been soldered to the PCB. In a coffee maker, you’re dealing with the PCBA — that’s what gets the coffee maker to “think” and do stuff.
A2: A single PCBA design cannot work for all types of coffee machines because each type of coffee machine has different requirements. Coffee machines are designed to be suitable for various coffee-making methods and different types of coffee beans, which require different coffee machines. Therefore, the same PCBA design is not suitable for all types of coffee machines.
A: Different brewing technologies have completely different requirements. An espresso machine PCBA has to control high-pressure pumps and exact, high-temperature boilers. Simple Drip brewer, it would mostly just be a heat element & timer. Component selection, power delivery design, and programming logic on PCBA should be adapted for these tasks to achieve better performance and safety.
Q4: What effect does the assembly process have on the quality of the final PCBA?
A: Assembly is important. Automated SMT (Surface Mount Technology), hundreds of tiny parts can be accurately placed and properly soldered. And afterwards are going to be the big testing to see if all the boards working the way they supposed to work, before they are fitted on machine to affect the final product consistency & quality like AOI (automated optical inspection), functional testing.
