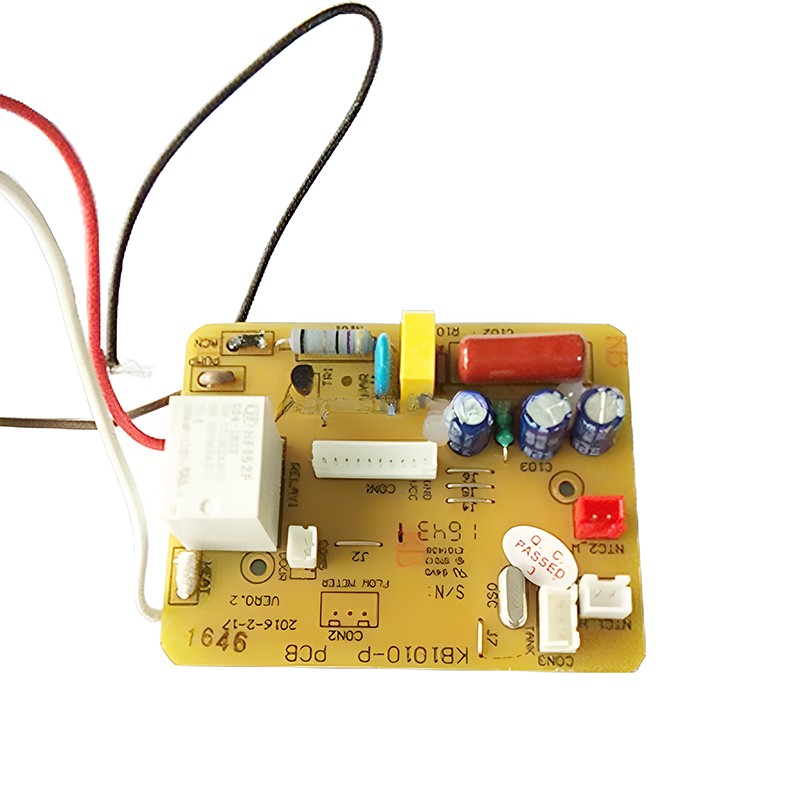

Automatic Espresso Machine PCBA

Looking for a reliable PCBA supplier? SUNSAM is your quality manufacturer from China, offering customized solutions, products in stock, free samples, and wholesale quotations.

The customized Automatic Espresso Machine PCBA serves as the central control unit for the espresso machine to achieve automation. It oversees water heating, the pump's activity, and user interface reactions. SUNSAM made this PCBA to fit different machines.

PCBA Design Approaches

SUNSAM follows a structured method when it comes to designing PCBA. It places emphasis on layout clarity as well as compatibility among the components. For the Automatic Espresso Machine PCBA, we use FR-4 substrate with Tg 130°C and double side. And also we have the checks on how a signal travels or thermal checks or so on.

Functionals

This PCBA is able to have programmable brew cycles, temperature feedback, and regulate pressure. Supports communication ports for diagnostics. The high quality Automatic Espresso Machine PCBA is intended to connect with the standard espresso machine sensors and valves.

Technical Parameters

Input Voltage Range: 110-240V AC
PCB Layers: 4
Board Dimensions: 150mm x 100mm
Interfaces Available: 2 USB and 1 GPIO for peripheral connection
Typical Power Draw: <50W during brewing

Integration and Use

The Automatic Espresso Machine PCBA in stock can be used for both commercial and domestic espresso machines. SUNSAM provides the design documentation and support to make it simple to implement. This PCBA is for making automatic espresso machines more easily by controlling the assembly.
