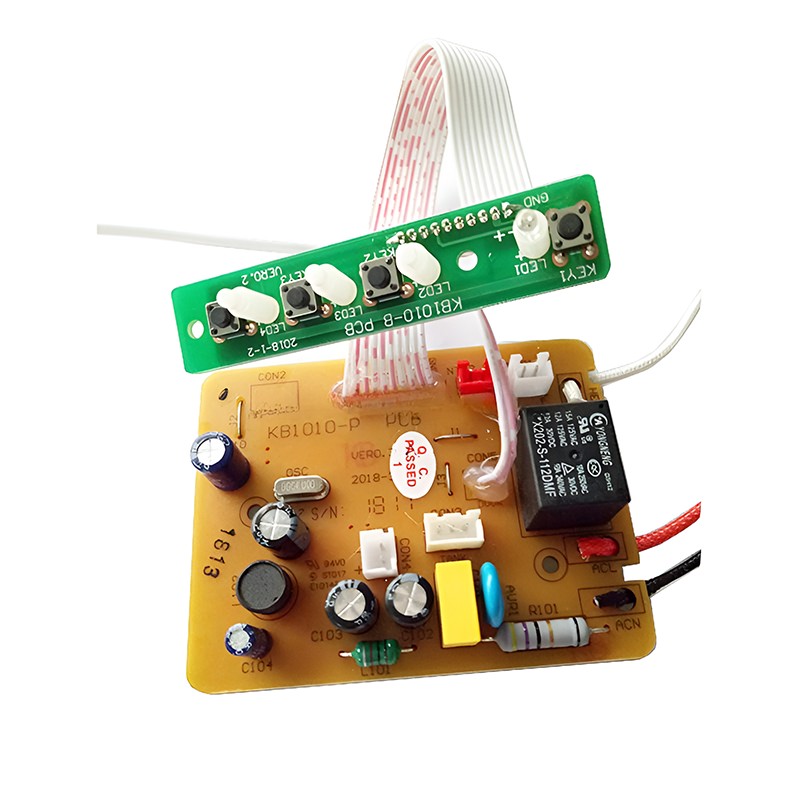

Capsule Coffee Machine PCBA

SUNSAM is a leading PCBA manufacturer and supplier from China, offering quality factory products in stock, customized solutions, free samples, and wholesale quotation services.

Businesses looking for or creating their own of these parts will want a better Capsule Coffee Machine PCBA. It’s not just an implementer of function; it’s also the foundation for making products stand out as well as being reliable. So it makes sure everything lines up and gets done, from how hard the water pumps, to how warm you want the warmth to be, all the way to figuring out which pods to get to drink exactly the same every time.

Core Control: The Accurate Path from Button Press to Brew

A usual Capsule Coffee Machine PCBA’s main duty is orderly performance of the brewing logic. A user presses a button and the microcontroller on the PCBA starts a careful dance of actions:

Initiation & Heating: The main control chip sends out commands to turn on the heating element, which is usually a kind of instant boiler or thermal block, and it keeps watching feedback from temperature sensors. It makes sure the water gets to its perfect extraction temperature – usually around 90°C - 96°C – very quickly.

Water supply & pressure control: PCBA drives micro water pump, move water from tank to heating module. The system creates stable extraction pressure inside the coffee capsule, by controlling the pump's power or speed, this is often between 9 - 19 bars. This is important to extract the coffee essence.

Process & feedback: the entire process: PCBA looks for water flow curves, temperature curves and pressure curves to see if they match the curve of extraction. Advanced models that have the ability for capsule recognition would also process signals from those recognition modules such as RFID or bar code scanner to automatically pair with the perfect brew settings.

Technical depth

Designing a customized Capsule Coffee Machine PCBA that runs reliably for a long time in high-temperature, high-humidity areas needs complete engineering ability. In the design of SUNSAM, the following points are paid attention to:

Thermal Management & Mechanical Integration: Coffee machines have a small internal space and heat sources. PCBA Layout should place heat-sensitive components like MCU and Capacitors first, and when needed, thermal pathways or high-temperature-resistant materials can be adopted. Also, the location of the connector and interface should match the device’s mechanical body and water path to make it easy for the device to be assembled during production.
Component Selection & Durability: For the circuit sections directly driving high-power loads such as water pumps and heating elements, components with a wide margin of capacity (MOSFETs, etc.), relays are selected. All components must meet an industrial grade temperature range to endure the thermal stresses of the repeated heating and cooling of the machine.
Signal Integrity & Noise Immunity: Pumps, relays, etc. create EMI during switching. PCBA Design uses a reasonable power segmentation, ground placement of power components, ferrite beads, and decoupling capacitors can be placed on the power supply side to ensure the unimpacted low-voltage control signal not trigger in error.
Design for Manufacturability (DFM): From the very early stages of design, SUNSAM takes into account whether large-scale production is feasible. And it is also include optimize the pad design for SMT, arrange the test point properly for FCT and program the chip on board to improve the yield and production efficiency.
Functional Evolution: Stretching into Smart and Personalized Features
The market changes, and the basic brewing function does not satisfy all the needs anymore. The modern Capsule Coffee Machine PCBA is becoming a platform for more value-added features:
Multi-Beverage Expansion: Additional circuits for air pumps, milk circuit control valves, and motor drivers are integrated into the same PCBA to allow the creation of milk-based coffees such as lattes and cappuccinos, greatly expanding the product range.
Smart Connectivity: Integrate Wi-Fi or Bluetooth modules to let the PCBA connect the coffee machine to the Internet of Things (IoT). Users can also start their brews remotely through their smartphones, personalize their personal taste profile, or be notified of a low water or empty capsule pod.
Low-Power & Energy-Efficient Design: In household settings, the PCBA can be made low-power sleep mode, keeping only basic functions active when not in use and waking up quickly when needed, balancing user experience and energy consumption.

Why should you choose SUNSAM to develop your PCBA?

You find a supplier for that Capsule Coffee Machine of yours, like having a development partner all up in the middle of what you’re making. SUNSAM provides more than just PCB assembly, we can give you full design support from concept to mass production.
Quickly translate from requirements to prototype: We are good at communicating closely with the client, transforming the client's functional requirements into technical requirements and circuit design plans, and quickly making prototypes to test.
Full-process technical collaboration: We are good at the entire process, from schematic design, PCB layout, to embedded software development and full-machine debugging. We work smoothly together with your mechanical design team and software UI team to deal with the integration problems of the system.
Cost- & Supply-Aware Design: We make sure to use parts that are common and easy to get to, so we can help keep your product from costing too much and make sure it can be supplied easily.
Every cup of convenient and fragrant capsule coffee behind it has a stable and accurate command of the internal PCBA. the union of power electronics and control theory along with embedded software, or simply mechatronics. You want to work on something brand new, or you already have a solution that could be improved, but don’t know how to get from your vision to a working model. If so, then getting into bed with someone as talented and creative as SUNSAM is going to be worth it.

You have a capsule coffee machine and want to know more about PCBA, SUNSAM is happy to chat with you.
