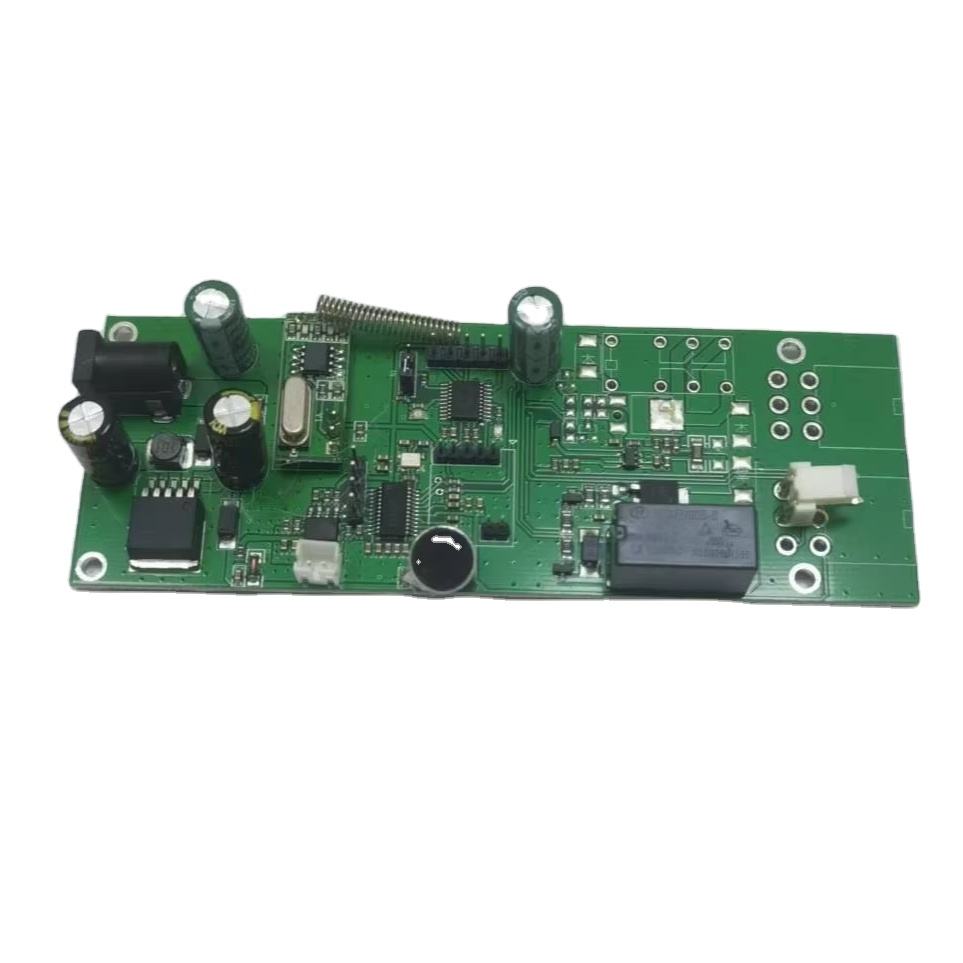

Smart Curtain PCBA

Smart Curtain PCBA - Get Applied PCBA Design Capabilities at SUNSAM
What is a smart curtain PCBA?

A Smart Curtain PCBA is the printed circuit board assembly responsible for controlling the motor, changing the direction, detecting the limit and handling user input in automatic curtain device. Teams will order Smart Curtain PCBA’s from SUNSAM and then rely on their PCBA design ability to put together control logic, driver circuits, and interface connections so that the curtain follows commands from the wall switch, remote control, or smart home systems. This board serves as the electronic control unit that connects motors, sensors and other communication modules to form a collaborative working unit.

Core Functions in Motorized Curtains Systems
Motor Drive and Position Control
Smart curtains rely on the control of a motor to move smartly open and close. A durable Smart Curtain PCBA takes care of motor drive signals, direction control and stop conditions according to Limit switch/position. In terms of PCBA design is the arrangement of driver circuits and control routes so that movement commands become expected mechanical motion.

User Commands and System Interaction
Curtain systems often accept inputs from physical buttons, remote controls, or connected platforms. The customized Smart Curtain PCBA receives and converts these inputs into motor actions. SUNSAM has the ability to design PCBA which includes the planning of signal routing and interface placements which will make it so that when the control inputs and motor drivers are operating together, the compact housings that are being used can be used by the customers for their smart curtain PCBA which will fit in any installations.

Design and Production Considerations

Board Layout and interface Planning

The Designing of a Smart Curtain PCBA requires choosing components that match motor load, voltage levels and interface needs. SUNSAM supports layout planning of the control circuitry and power section that is evenly distributed, and also places the connectors according to the wiring routes that have been used in curtain track and motor assembly.

Testing and Assembly Workflow

Every Smart Curtain PCBA before shipment got to see a visual check as well as electric and tried on its functions consisting of motor direction, start/stop, and inputs. These steps to confirm that the board works as configured before integration into finished curtain system.

Procurement and Integration Insight

When manufacturers buy Smart Curtain PCBA, generally also need to consider that PCBA Should be compatible with what kind of motors are determined for the Type of Mount Structures have been determined and control interface that has been determined. SUNSAM support this process provide Design Doc, Interface Ref, Early Tech Coord to make Smart Curtain PCBA match Product structure and Production plan.
