Pet water dispenser products are being replaced by small- and relatively low-power electronic drinking stations over passive bowls. A typical pet water dispenser has a pump, a group of sensors, a filter pathway, an indicator light, power-on/off switches, etc., and so on.
SUNSAM PCBA develops a smart pet water dispenser PCBA that can achieve automatic circulation, sensor feedback and pump control in home and shared-space pet care devices. A control module processes the signal of the water device and starts or stops the pump.
The brand of appliances decides whether it should be a quiet, stable, simple-to-operate, and easy-to-assemble pet fountain. Aesthetics will attract buyers first; PCBA design will maintain the original pump operation, level-sensing and indicator-behavior functions after shipping.
A pet water dispenser PCBA connects all the active functions of the appliance. Microcontroller reads water-level detection, starts or stops the pump, manages LED status, accepts button input, and supports optional wireless reporting via an app in connected versions.
A stable pump drive will be employed to circulate water. Low-voltage pump circuits should not have a large current draw, audible vibration or unstable start-up. SUNSAM PCBA reviews the pump type, rated voltage, connector position and cable direction before layout confirmation.
A Sensor protects the Equipment from damage. A Water-Level Sensor Can Alert Us of a Dry-Run Condition. Enable the fountain when a pet approaches a nearby proximity sensor. A filter-life counter or LED alarm can be set up to notify users when to change the consumable.
Power Design Relates to Daily Life. USB-in, adapter-in, rechargeable battery or dual-mode power should be used for that product. SUNSAM PCBA Design for Power Regulation based on pump load, standby consumption, LED current and wireless module requirements.
Pet Fountain Housing Sets Special Layout Restrictions. A dog or cat water dispenser generally has a wet area, filter tray, pump chamber and dry electronics chamber. Board size, screw holes, connector height and cable exit direction must be consistent with the moulded enclosure.
The Alibaba reference product category has the strengths of automatic circulation and filtration. The PCBA needs to handle water movement through a filter path and maintain pump operation in various water-level and cleaning-condition environments.
A Stainless Steel or Plastic Drinking Tray Alters Grounding, Insulation and Assembly Planning. The PCBA supplier will verify the material of the enclosure, the placement of the pump and water path, and the final wire harness before approving the board layout and connector arrangement.
Pets' devices also have hair, water vapour and cleaning liquid residue. A reasonable board plan has enough space around connectors, uses a suitable coating area when necessary, and separates sensor traces from pump drive traces to reduce false triggers.
Foshan Shunde SunSam Electronic Co., Ltd. is located in Phase I of TianfuLai International Industrial City, Rongui Town, Shunde District, Foshan City, Guangdong Province, China. SUNSAM PCBA lists project development, PCBA manufacturing and marketing as integrated capabilities.
SUNSAM PCBA has been conducting project management for 15 years, is GB/T 19001-2016 and ISO 9001:2015 certified, has multiple modern production lines, and has engineers specialising in home-appliance PCBA development and manufacturing.
SUNSAM PCBA also lists component procurement, PCBA fabrication, PCBA assembly, prototyping and mass production, cable wire harness service, EMS service, quality management, technical support, fast turnaround, and more than 5,000 served clients.
For capacity planning, SUNSAM PCBA has set targets of 520,000 PCBA pieces per month, established 4 SMT production lines and 2 THT production lines, aims for sample delivery within 15 days, and will have PCBA prototyping with programming completed in 2 weeks.
The above data are used to develop a program for a pet water dispenser; a brand owner needs a quick prototype first, followed by a pilot order, and then a large-scale seasonal order before participating in online platform campaigns or retailer delivery windows.
A pet water dispenser PCBA project should start by having a finished sample, CAD structure drawings, function descriptions, pump specifications, a list of sensors, battery or adapter requirements, an indicator plan, and expected monthly quantities.
SUNSAM PCBA engineers can observe the appliance around the real water channel. The review needs to verify whether the pump voltage, maximum pump current, water-level sensor mode, dry-run logic, button count, LED colours, filter reminder logic and sleep-mode behaviour are all correct.
The function list is now clear, and we can begin schematic design and PCB layout. Arrangement should avoid proximity to weak sensor signals for the pump driver, keep the antenna area free of interference for a wireless module, and place connector areas conveniently for assembly.
Prototype testing should include the following functions: pump start-up, water-level detection, low-water alarm, LED response, button response, battery charging (if battery power is available), and full appliance operation after repeatedly removing and cleaning the water tank.
Mass production should cover the inspection of incoming materials, monitoring of the soldering process, visual inspection, electrical tests, function tests and packaging checks. A wet-use pet product is also suitable for final assembly guidance of wire sealing and connector protection.
A pet appliance brand is considering releasing a new 2.2L- or 3L-capacity automatic pet fountain for both Amazon and off-line pet stores. The brand selects a silent DC pump, a replaceable carbon filter, white LED indicators and a low-water warning.
The brand has sent a working sample and a function sheet of SUNSAM PCBA. SUNSAM PCBA designs a circuit board for the selected pump, designs a connector arrangement of the housing, and builds a test rig to verify pump drive and water-level sensor response.
During the pilot production, the team found that the pump's start-up current is higher than originally expected. SUNSAM PCBA will adjust the driver margin, widen the power trace, and update the BOM before bulk purchasing of components. Reduce the risk of the large order in the field.
Train operators in the assembly course on cable routing from the pump chamber to the control board chamber. A fixed cable path does not reach the impeller area of the pump cable. A fixed-path cable arrangement will also pass the subsequent cleaning test repeatedly.

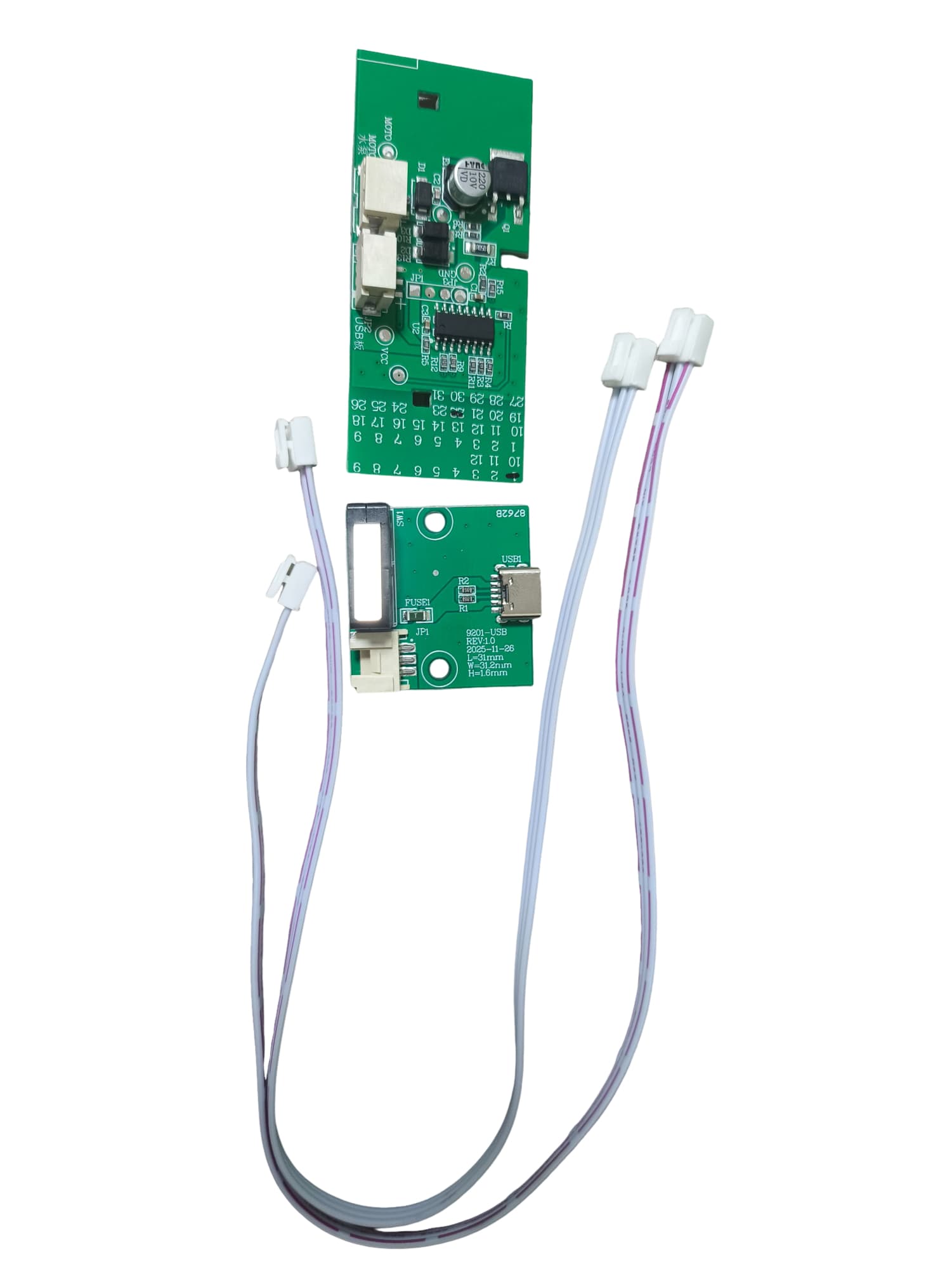

A typical Smart Pet Water Dispenser PCBA may include a microcontroller, a pump driver, a power regulation circuit, a water-level sensor interface, button input, an LED indicator circuit, a connector group, an optional charging circuit, and an optional wireless module.
A small computer runs a control program. Start circulation based on sensor conditions and user settings for the pump driver. The Power Regulation Circuit Stabilises Voltage During Pump Start-up. The light of the LED indicates that the device is on.
A Wireless Version May Add Wi-Fi or Bluetooth. The functions of the App may include low-water alerts, filter-replacement reminders, pump mode selection and device status display. Antenna clearance, EMI reduction and standby power for wireless products need to be planned better.
A battery Edition is required for charge management, battery protection coordination and low-power firmware. The operational time and off-set period of battery-operated fountains need to be balanced, as well as brightness and safety when charging.
Before the quotation, the buyer should prepare a physical sample or a 3D structure drawing, the target board size, pump model, sensor type, power input, indicator plan, button plan, wireless requirements, target safety standards, monthly production forecasts, etc.
Buyers need to specify whether SUNSAM PCBA requires only the bare PCB, full PCBA assembly, wire harness, programming, coating, functional test or box-build support. A particular Scope reduces quotation errors and shortens engineering communication.
The buyer needs to know how good the goods are in advance. A simple pet fountain only requires pump control and a low-water LED. A high-end pet fountain should also have app alerts, a filter-life reminder, battery-charging functions and stainless-steel-structure integration.
SUNSAM PCBA is suitable for pet water dispenser projects that require prompt engineering discussions, custom board layouts, pump and sensor integration, component sourcing, assembly and functional testing under a single supplier team.
