Looking for a reliable PCBA supplier? SUNSAM is your quality manufacturer from China, offering customized solutions, products in stock, free samples, and wholesale quotations. At SUNSAM, our goal is to design the process for us, so we can turn the need of the operation to be turned into the design process of a board. From the first design to the final product.

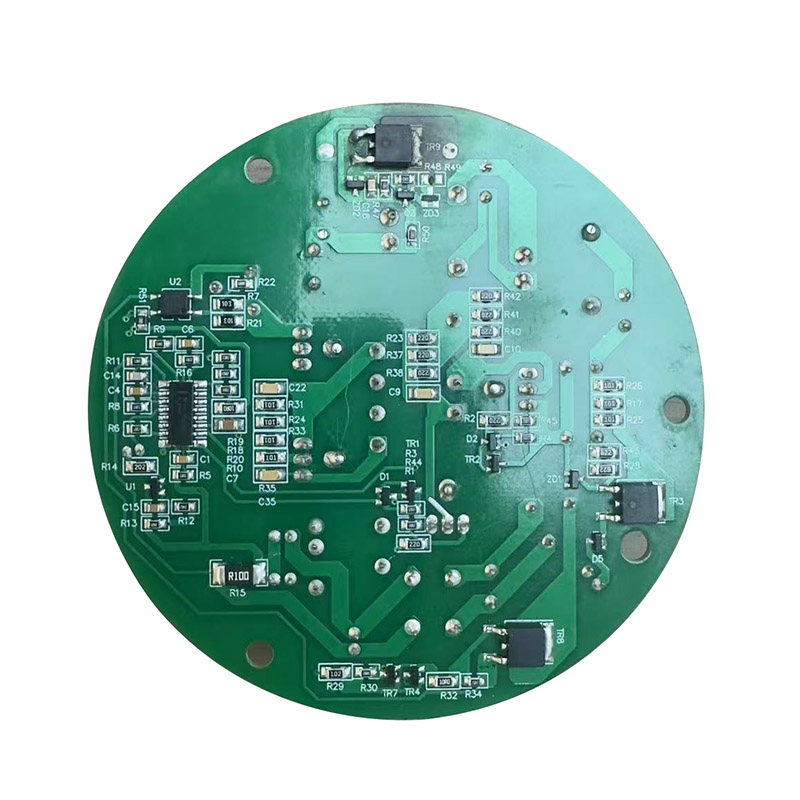

The main mechanical benefit of a bottom-loading design is ergonomically and hygienic. Users just put the water bottle in a base at the bottom. The SUNSAM durable integrated Bottom-Loading Water Dispenser PCBA takes over and a pump is activated to draw water up into the reservoir. This design solves a common problem and potential source of contamination. PCBA is the electronic control that will make sure that it will be done automatically and reliable, to make sure that there will be the same amount of water flow whether it will be dispensing hot water, cold water, or just ambient water.
The dispenser is reliant upon the high quality Bottom-Loading Water Dispenser PCBA’s capability to interact with and direct different subsystems. Well organized schematic is the beginning, group all the similar components like the microcontroller, the motor driver for the pump, the temperature sensor and heating/cooling module interface. SUNSAM design team creates an unified layout for stable power distribution and clear signal path. For example, the board has to give exact control over temperature settings, so people can pick what they want - cold water or hot water - and that's shown in a basic sort of way.
User Interface Control: Bottom-Loading Water Dispenser PCBA handles all of the user’s interactions like pressing buttons, digital screens responding back, and more, so it’s easy for them to use.
Pump & Motor Drive: It delivers the right power and control signal to the water pump so that the water can be efficiently and quietly transferred from the bottom bottle.
Temperature Management: Interfaces with thermostats and controls heating elements (up to 95°C for hot water) and cooling systems to maintain water temperature.
Safety monitoring - the circuit has some safety protections like dry boil protection, leak detection, and over temperature cut-off to make it safe.
One of the essential aspects of SUNSAM's PCBA design is to start designing with a focus on end manufacturing process. It is regarding the creation of easy-to-follow documents and boards, not including usual assembly potholes. We look at parts placement so an auto assembler can put them together easily, we make sure the good and bad sides are easy to see, and we think about how to keep it from getting too hot inside a small container. This is a proactive attempt at smoothing the design-to-mass-production transition.
This Bottom-Loading Water Dispenser PCBA is for integrating with a variety of different freestanding bottom loading dispensers. The value is that it gives the manufacturer a tested, functioning electronic module. This enables brands to concentrate on industrial design, cabinet structure, and market-specific features, lowering development duration and technical danger. The board is like a customizable platform that can be changed to fit different kinds of pumps, how it shows things, or how it talks to other stuff, depending on what kind of final product will be sold.
To summarize, the Bottom-loading water dispenser PCBAs are a highly targeted application of control electronics to solve a specific user need. SUNSAM will develop these boards that stress clear function, practical design, and effortless fit so as to offer a sound electrical groundwork for modern, user-friendly hydration gadgets.
