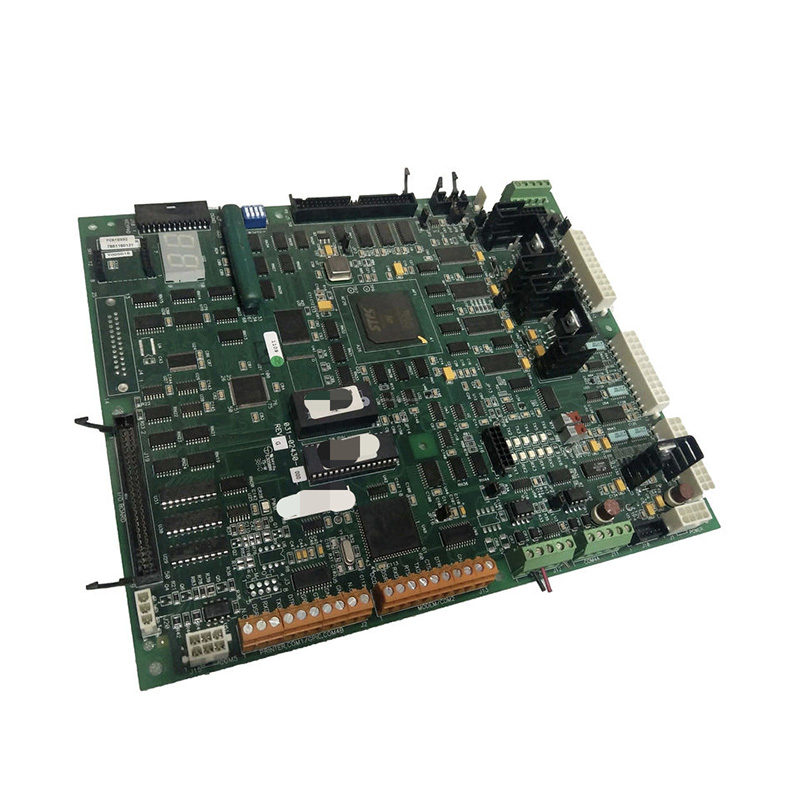

HVAC System Chiller PCBA

Key Design and Functional Features

Core Control Logic: SUNSAM high quality HVAC System Chiller PCBA is doing the important job of PID (Propotion, Integration, Differentiation) operations to temperature data. The calculated control will let the chiller react to any changes in setpoints in order to have a stable heat management system that can possibly save energy by not putting any extra load on the compressor during little to no temperature differences.

Design for Application: Realizing that HVAC systems work in demanding environments, these PCBAs are built to last. Design could contain details fitting operations in hard circumstances, the cold and damp found in fridge usage being an illustration.

Communication and integration, SUNSAM's customized HVAC System Chiller PCBA has the feature of serial communication. This permits the main control board (PCB1) to obtain data from the subsidiary boards (PCB2) or sensors and transmit control signals for coordinated system management. And integration with building management systems through protocols such as Modbus, which is also a common design consideration for centralized monitoring and control.

Technical Considerations for Integration

Integrating a new PCBA into a chiller or using the new PCBA to replace one comes with some technical side. Such as sensor types and interfaces (temperature, pressure), specific compressor and EEV driver parameters, and required communication interfaces. Physical design of the PCBA, layout, conformal coating or over-mold, is also important for long term reliability in the installed environment.

To know more details of the technical specification, or need the file for the designing or have a custom HVAC System Chiller PCBA project and your chiller model needs, then please do contact SUNSAM's engineering team. Our PCBA design and manufacture service can support your project from the schematic capture, PCB layout, through-hole and surface mount assembly all the way to the assembled board production.
